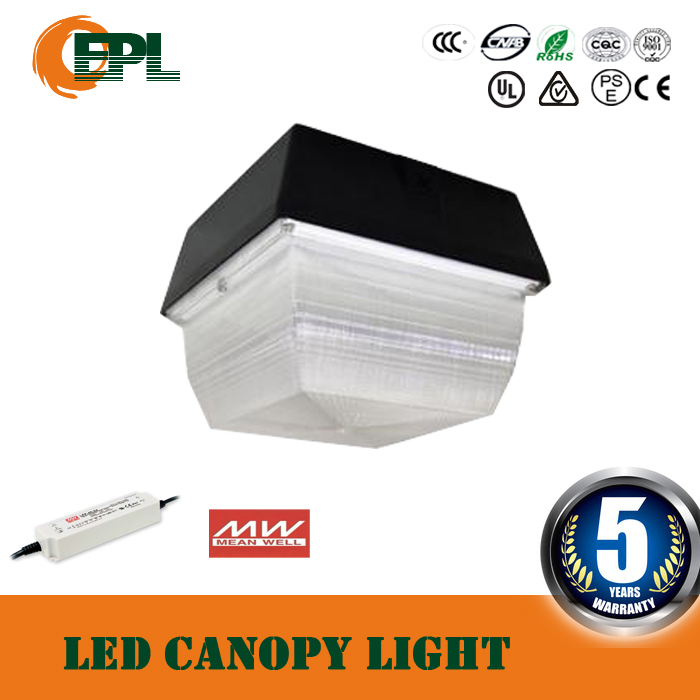

LED CANOPY LIGHT-Product Center-EP LIGHTING INDUSTRY CO.,LTD.-

1. EP LED Canopy light Features

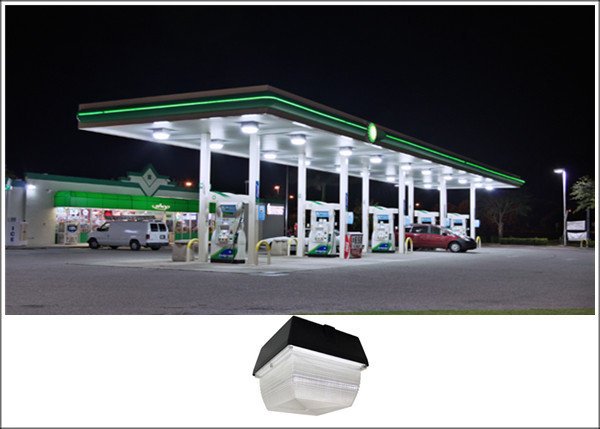

▼ general-purpose applications in parking garages and gas stations.

▼ Fixture material is Die-casting aluminum + Shatter proof polycarbonate lens.

▼ High lumen output, 95-105LM/W.

▼ 80+ CRI. CRI95 can be reached if you required.

▼ Recessed outlet box or ceiling surface.

▼ CCT 3,000K 4,000K 5,000K.

▼ IP65 rated and suitable for wet locations.

▼ No RF interference, No IR/UV radiation, no mercury pollution

2.Specification

Model	CP02040	CP02060	CP02090

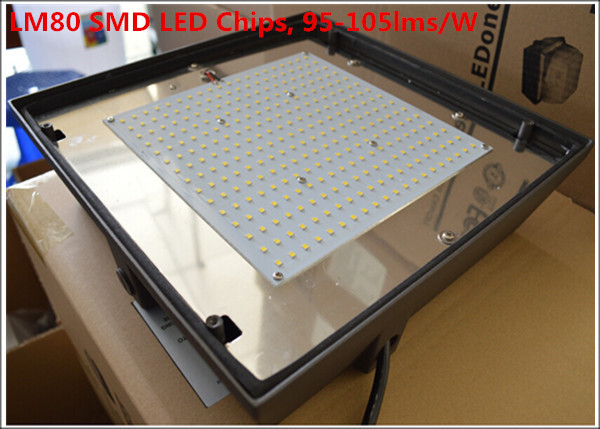

LED Type	SMD 2835 or 5730	SMD 2835 or 5730	SMD 2835 or 5730
LED Chips	LM80 approved	LM80 approved	LM80 approved
Mount	Recessed outlet box Or wall surface	Recessed outlet box Or wall surface	Recessed outlet box Or wall surface

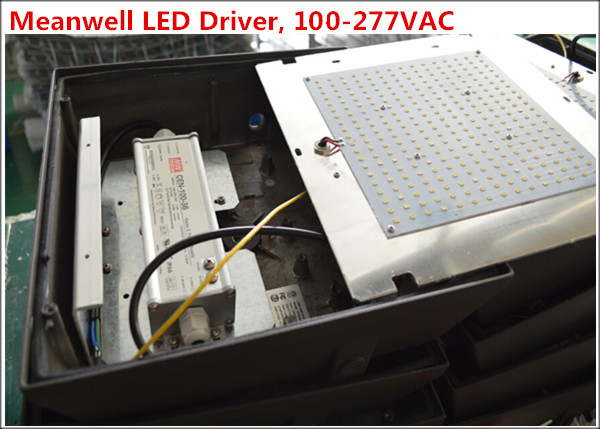

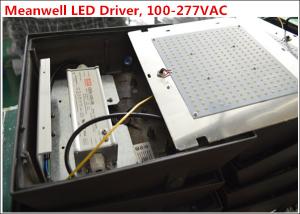

Input Voltage	AC 100-277V (50/60Hz)	AC 100-277V (50/60Hz)	AC 100-277V (50/60Hz))
Rate Power	40±1W	60±1W	90±1W
Equivalent Wattage	150W	250W	400W
CCT	2700K~6500K	2700K~6500K	2700K-6500K
Light Efficiency	95-105lms/W	95-105lms/W	95-105lms/W
Material	Tempered glass and Die-casting aluminum	Tempered glass and Die-casting aluminum	Tempered glass and Die-casting aluminum
Operating Temp.	-30–130°F (-34–54°C)	-30–130°F (-34–54°C)	-30–130°F (-34–54°C)
Operating Humidity	20–85% RH, non-condensing	20–85% RH, non-condensing	20–85% RH, non-condensing
Dimension	226226183mm	313313226mm	313313226mm
Waterproof	IP65	IP65	IP65
Warranty	Five Years	Five Years	Five Years
